Road Sweeper RD-S8

S8 dust sweeper Gemei electric sweeper S8, cleaning width 1.8 meters,suitable for factory and public places that have more steep slope and more dust. S8 can clean metal debris, various ceramic powder, coal cinder, and various of industrial and living garbage. The bin capacity is 165 L, which can still keep the best cleaning effect in dirty places.

Inquiry Now

Specification
Sweeping width1800mmMax sweeping speed0-6Km/h
Productivity10,800㎡ /hMax  speed0-12Km/h
Length of main brush700mmMax climbing capacity14°/25%
Power supply
36VFilter area9.5㎡
Continuous working hours6-8hChassisIron
Dustbin capacity165LControllerCurtis
Side brush diameter500mmBatterycellnike 36V/6V-200AH
Driving power3000WWire(CIS)
Work power600w+500w+60w+ 80w*4N.W810.00kgs
Turning radius2350mmG.W1002.50kgs
Dimensions(L/W/H)2000*1800*1950mmPacking size2300*1500*1750mm


Product features

CHARACTERISTICS

1. Four side brushes, sweeping width of 1800mm, high working efficiency.

2. Large power for suction system guarantees the suction performance.

3. The use of advanced high-performance maintenance-free batteries, no leakage, do not produce harmful gases.

4. Has international advanced clean-rejection technology, dust box rate up to 100% of the Value.

5. The reliable good quality parts help to reduce maintenance and repair costs.

6. Solid tire, strong and durable.

7. Imported electronic control device, current protection device, low-voltage protection device, enforced pallet, bigger in size of trash bin.

8. high pressure water spray system can cut down the dust flying.


S8: For Dusty Places with Steep Slope

Area coverage up to 10,800 ㎡ cleaned per hour

S8 is designed for factory and public places that have steep slope, much dust or very dirty.

Can clean metal debris, ceramic powder, coal cinder and other various of industrial garbage.


Detail information and adxantages


Gemei
The shell is made of ABS material, which has high strength,aging resistance, corrosion resistance, anti fouling ability, easy to clean stains.


Gemei
Table 304 stainless steel panel, fresh. The United States Curtis power meter, low power consumption watchband protection is an important protection configuration for battery life. Schneider button, to reach the IP65 level, silver contact, longer service life.


Gemei
The use of American brand Curtis big power controller, with brake current recharge function, prolong the mileage, and electronic brake function, descent function, operation more safety.


Gemei
Driving power of 3 kilowatts, more able to adapt to the use of municipal sanitation high load environment.


Gemei

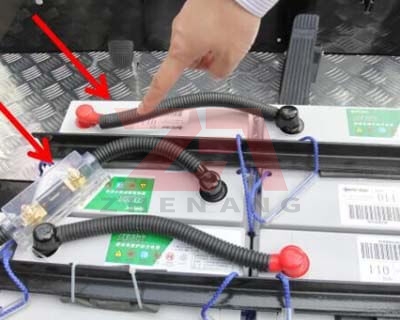

The battery line adopts 25 square GB flame retardant line, with overload protection device, and the battery pack to strengthen the floor, to reduce the impact and shock on the battery, the battery is connected with a protective paste.


Gemei
Seat with armrests and safety seats to increase operator comfort and safety.


Gemei
The brake device adopts special brake car, the braking distance is shorter, less labor, higher security.


Gemei
Integrated wiring harness, to achieve automotive TS16949 standards, wire to German standards, the use of flame-retardant wire.


Gemei
The filter core area of 9.5 square meters, the greater the filtration area, the more time to absorb the dust within the unit time, cleaning dust smaller, effectively prevent dust pollution of the two.


Gemei
The garbage box is designed for the large capacity of 165L, which increases the load capacity of the garbage bin, reduces the number of dumping, and improves the working efficiency.


Gemei
Our sweeper for municipal road design, from the 8CM, more easily through the buffer zone and the uneven pavement, road teeth, ensure the sweeping effect.


Gemei
The front wheel multistage adjustable shock absorber, reducing driving vibration, reducing operator fatigue and also reduce the road facing body structure impact, increase the life of the vehicle.


Gemei
All sweeping car products can be purchased third insurance, so that customers in the course of driving no worries.
